Wooden Handle Machine|Mop Broom Sticks Processing Machine

  • Material: wood
  • Capacity: 1800 sticks/h
  • Loading Port: Qingdao Port

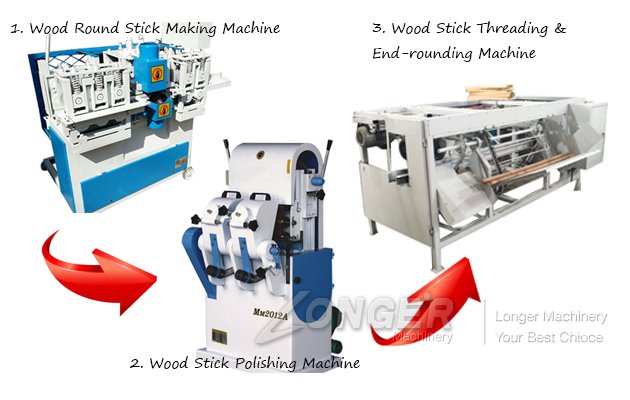

  • Description:The total set of wooden handle or round sticks production line consists of wooden round stick making machine, round stick polishing machine and threading and end-rounding machine.
Features
The total set of wooden handle or round sticks production line consists of wooden round stick making machine, round stick polishing machine and Screw Thread Machine.
The capacity: Process 30 sticks per minute.1800 sticks per hour.

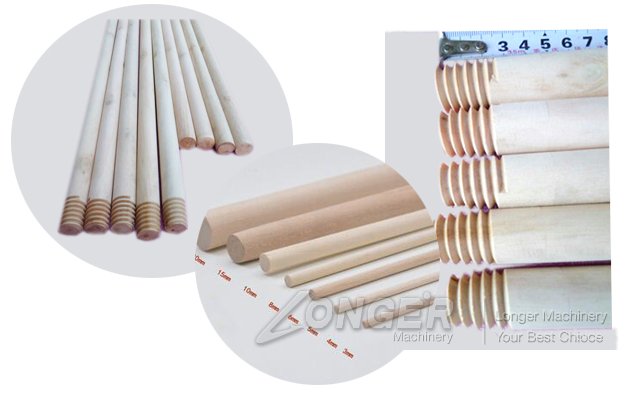

The diameter range of the round sticks:23-38mm.

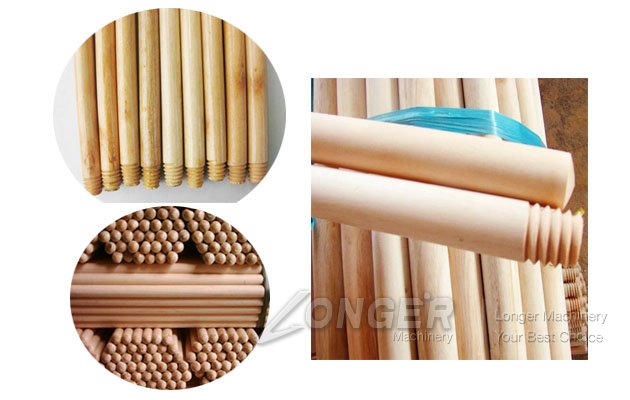

The size of the finished wooden handle sticks 1.2m and 1.5m long.
The voltage is 380v/50hz,three phase.

Technical Data

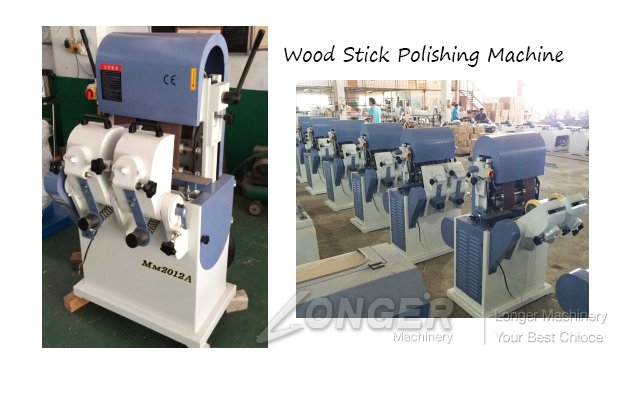

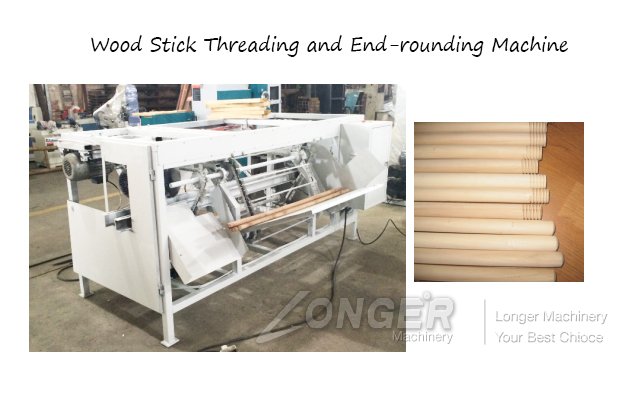

Wooden Round Stick Machine Polishing Machine LGMM2012A Threading Machine
Power 7.5kw Voltage 380V Model LG-2250
Min processing diameter 15mm Motor Power 3kw Minimum Diameter 20mm
Max processing diameter 38mm Fan Power 0.44kw Maximum Diameter 28mm
Knife number 2 pcs Spindle speed 1420r/min Stick Length Range 1100-1375mm
Working speed 8-25m/min Feeding Rolls Speed 70r/min Processing Length Range 1150-1300mm
Size 980×960×1180mm Sanding Belt Roll Speed 890mm/min Dimension 2200*1200*1100mm
Weight 720kg Sanding Belt Specification 1880*120mm Weight 1000kg
Min processing length 450mm Machine Diameter Range 6-60mm Capacity 30pieces/min
Max processing length Not limited Dimension 950*580*890mm
    Weight 250kg
