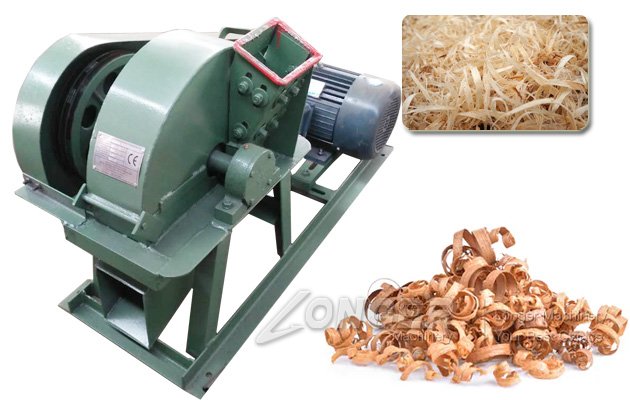

Shaving Mill Machine|Wood Shaving Machine Price|Wood Sawdust Making Machine
- Material: Wood
- Capacity: 300-2500kg/h,can be customized
- Loading Port: Qingdao port
- Description:The wood shaving machine is mainly used for mass production of sheet shavings with uniform thickness. It is an automatic wood shaving machine.
Features
The wood shaving machine is mainly used for mass production of sheet shavings with uniform thickness. It is an automatic wood shaving machine. The machine comprises a frame, a platform placed on the frame, a tool holder fixed on the platform, the wood material enters the machine from the feeding port, the blade is sliced inside the machine, the shavings are produced, the size of the shavings is uniform, the thickness is uniform, and the wood There is no difference in the hand-made shavings in the factory.
The machine can process logs, branches (branches) and edge boards into shavings. The produced shavings are the same as the shavings produced by the furniture factory. The automatic feeding equipment greatly increases the production speed and saves time and manpower.
This wood shaving mill machine is a device for automatically pulverizing and processing wood into shavings. After the raw material enters from the feeding port, it passes through the blade and cuts into the crushing chamber. It is crushed by the impact of the high-speed rotating hammer and the cutting knife, and then the built-in wind. The wind generated by the leaves is sent out through the screen or the external fan is pumped out of the discharge port. The size of the shavings is determined by adjusting the length of the blade and the size of the screen aperture to suit different needs.
Video:
Video:
Technical Data
| Model | LGW400 | LGW600 | LGW800 | LGW1000 |
| Cutter head dia. | 400mm | 600mm | 800mm | 1000mm |
| Knife quantity(pcs) | 4 | 4 | 8 | 9 |
| Inlet size( mm) | 160*200mm | 200*240mm | 260*280mm | 330*420mm |
| Main shaft rotary speed(r/min) | 450mm | 450mm | 400mm | 600mm |
| Power( kw) | 7.5-11 | 15-18.5 | 22-30 | 55 |
| Capacity( kg/h ) | 300-500 | 500-1000 | 1000-1500 | 1500-2500 |
| Packing Size(mm) | 1450*700*800 | 1600*700*900 | 2000*1000*1250 | 2400*1200*1400 |
