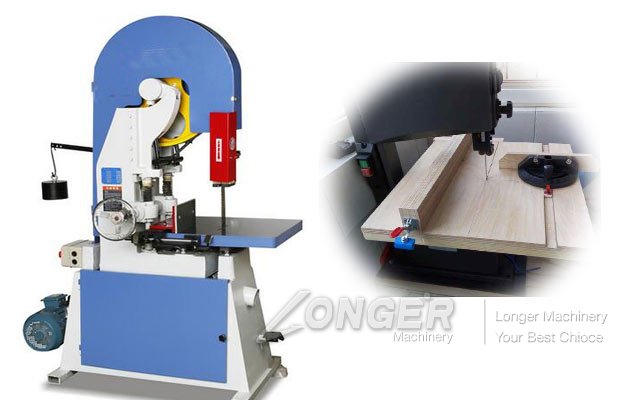

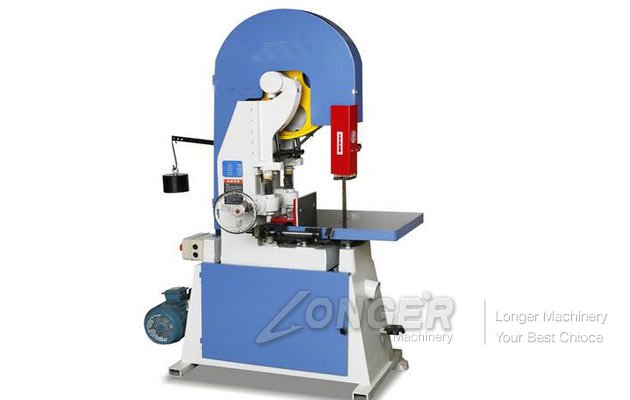

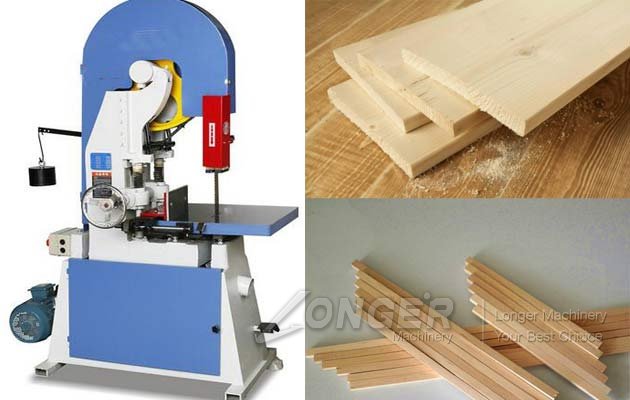

Vertical Wood Band Saw Machine LGMJ800
- Material: wood
- Capacity: 600r/min
- Loading Port: Qingdao port
- Description:Wood band saw machine in the wood industry is widely used and with different models.
Features
Wood band saw machine in the wood industry is widely used and with different models. Specifications of Vertical wood band saw machine:
1. New slope shape
2. Quick clamping lever and blade tension adjustment on the back of the machine.
3. Precise and simple adjustment of the cutting height and the upper blade guide using large-size handwheels and a rack system.
4. Both upper and lower blade guide are molded on bearings for improved performance and extended blade life.
5. Two windows to show the belt tension and blade running position.
6. Smooth and flexible to tilt the working table
Technical Data
| Model | LGMJ800 |
| Saw Wheel Diameter | 800mm |
| Speed of Saw Blade | 600r/min |
| Work Area | 800*740mm |
| Motor Power | 7.5kw/11kw |
| Length of the Blade | 5380mm |
| Spindle Speed | 800r/min |
